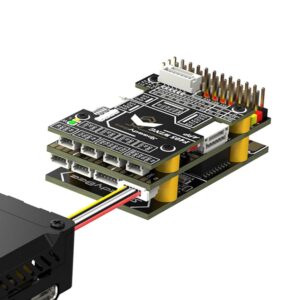

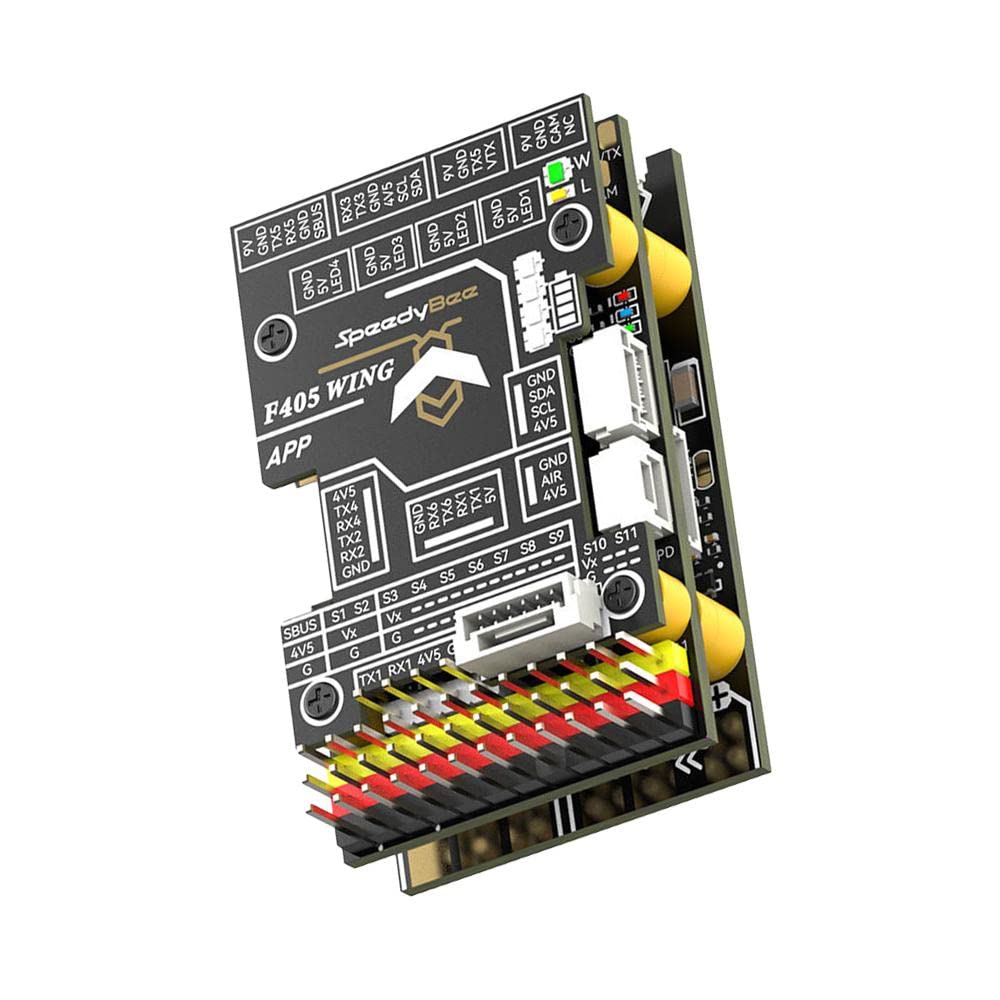

F405 Wing App Flight Controller 168MHz for FPV Drone RC Airplane Quadcopters|Toys & Hobbies | Radio Control & Control Line | RC Model Vehicle Parts & Accs | Other RC Parts & Accs
Original price was: ₹9,999.00.₹8,999.00Current price is: ₹8,999.00.
Product description
Description:
【Flight Controller】: F405 Wing APP Flight Controller, supports wireless configuration via Apps, no more tedious drivers or data cables, easy and convenient configuration.
【Wide Applications】: Professional flight Controller is designed specially for fixed wing drones, FPV drones, RC airplanes, etc.
【MCU】: STM32F405, 168MHz , 1MB Flash, IMU: ICM42688-P, Baro: SPL06-001, OSD: AT7456E, : MicroSD card slot.
【Multi Interfaces】: The F405 Flight Controller has 6x UARTs, 12x PWM,1x I2C, Plug and play, .

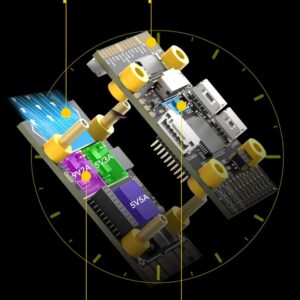

【PDB Board】: Flight Controller, Input Voltage Range: 7~36V (2-6S Lipo ), with TVS protection, Scale 195 in INAV, 50 A/V in
Specification:

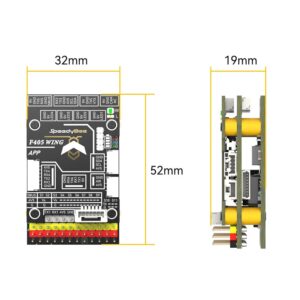

Product size: 3.2cmx5.2cmx1.9cm/1.26inchx2.05inchx0.75inch
Material: electronic components, poly
Package Includes:
1 Flight Controller
Note:
Please allow slightly errors due to manual measurement and different monitors.
